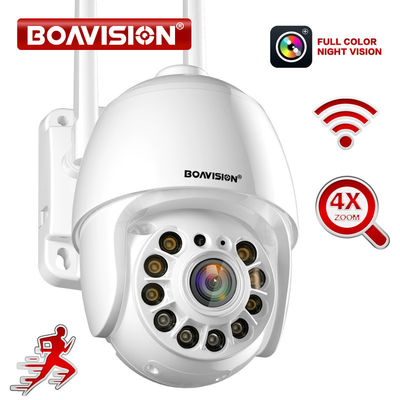

PTZ camera 2 Inch HD 1080P MINI WIFI PTZ IP Camera
CCTV Security IP Camera Outdoor IR 30M Two Way Audio Motion Tracking P2P CamHipro/CamHi
4X Digital Zoom(CamHipro)
This camera supports 4.0X Digital Zoom, Press and hold the screen with both hands to Zoom in/out and see more details.
Motion-Tracking&Alerts
Motion-Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.
Day And Night Color Vision
6Pcs Spot White light LED+4 Array IR LEDs, 30m B&W Night Vision,20M Color Night vision
Third Party Software Support
Two Way Audio Talk Back
Built-In Microphone, Support Two Way Audio Talk Back ( With Speaker )
Pan Tilt Rotation
Horizontal: 355 Degree & Vertical: 90 Degree
Motion Detection & Alarm Linkage
Can Set 4 Independent Detection Region (1-100 Sensitivity Can Be Set) Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server, Alarm Write Pictures And Videos To Micro SD Card, Alarm Message Push
Support TF / Micro SD Card
Up To 128GB, Very Easy To Install The TF / Micro SD Card ( TF Card is optional choose )
Usage Scenarios
Can Be Used In A Variety Of Environments, Whether It Is Rain Or Dust Can Be Effectively Isolated
2 Inch Super Mini Size
3.6mm Fixed Lens ( 4X Digital Zoom)
Features :
2 Inch Auto Tracking Super Mini Size PTZ Dome WIFI IP Camera
3.6mm Fixed Lens (4X Digital zoom )
Support HD 1080P High Quality Resolution
Support TF/Micro SD Card, up to 128G(TF Card Optional Choose)
Pan Tilt Rotation, Horizontal:355° & Vertical:90°Ø
6pcs Spotlight LED+4Pcs Array Infrared LEDs,30m B/W Night Vision/20M Color Night vision
Support P2P, View & Anywhere & Anytime
Provide Android & IOS APP (CamHi) and professional CMS PC client software
Built-in Microphone,LoudSpeaker,Support Two Way Audio Talk Back
Specifications:
|
Model |
HX-HD22M102M |
|
|
Camera |
Operating system |
Embedded Linux OS |
|
Megapixel |
1920*1080 |
|
|
Lens interface type |
M12 |
|
|
Lens |
3.6mm Fixed Lens(4X Digital zoom ) |
|
|
View angle |
75deg |
|
|
Min.illumination |
0.05 Lux / 0 Lux(IR on) |
|
|
Day&Night mode |
Auto IR-CUT |
|
|
Night vision distance |
6pcs Spotlight LED(20M)+4PcsArrayInfrared LEDs(30M) |
|
|
Video |
Video compression standard |
H.264 Main Profile/H.264 Baseline |
|
Video streaming |
Dual streaming |
|
|
Video resolution |
First stream: 1080P(1920x1080), 720P(1280x720) |
|
|
Second stream: Q720P(640x480/640x352), QQ720P(320x240/320x176) |
||
|
JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176) |
||
|
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
|
|
Video frame rate |
12fps(PAL 50HZ). 12fps(NTSC 60HZ) |
|
|
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
|
|
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
|
|
Audio |
Audio compression standard |
G.726/G.711 |
|
Audio code rate |
Rate adaptive |
|
|
Audio Input |
Support, Built-in Microphone |
|
|
Audio Output |
Support Two Way Audio Talk , Built-in Loud Speaker |
|
|
Function |
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the specified mailbox, alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm message push |
|
|
Privacy mask |
Maximum support 4 users to simultaneously browse |
|
|
OSD |
Support camera name, date and time information superimposed |
|
|
User management |
Supports user and rights management |
|
|
Simultaneous viewers |
maximum support 12 users to simultaneously browse (each stream supports 4 users) |
|
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. |
|
|
Wireless |
Wireless standards |
IEEE802.11b. 802.11g. 802.11n Draft |
|
Frequency range |
2.4 GHz to 2.4835 GHz |
|
|
Wireless Security |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
|
|
Transmission rate |
11b: 11Mbps,11g :54Mbps,11n :135Mbps |
|
|
PTZ |
Rotation angle |
Horizon:0° to 355°. Vertical: 0° to 90° |
|
Horizontal speed |
1° to 40°/S |
|
|
Vertical speed |
1° to 20°/S |
|
|
Preset |
N/A |
|
|
Interface |
Power interface |
1*5.5mm power interface |
|
Ethernet |
1*RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
|
|
TF card Slot |
1*TF card slot. up to 128G(Don't included TF Card) |
|
|
Reset button |
Support |
|
|
General |
Power supply |
DC 12V 2A |
|
power |
Day: 3W; Night: 12W |
|
|
Operating temperature |
-20 to +60 degree |
|
|
Operating humidity |
10% to 95% |
|
|
Material |
ABS Plastic Housing ,Outdoor Use,Waterproof IP65 |
|
|
Installation |
Rack mounting |
|
|
Size(W×D×H)(mm) |
137x128x92mm |
|
|
Weight(kg) |
0.65kg |
|
Packing List:
1*Auto Tracking WIFI PTZ IP Camera Built-in Microphone,Loud Speaker (TF CardOptional Choose)
1*DC 12V 2APower Supply (Optional Choose)
1*CD& Manual
1*Screws Bag
2*Antenna
1*Network Cable
