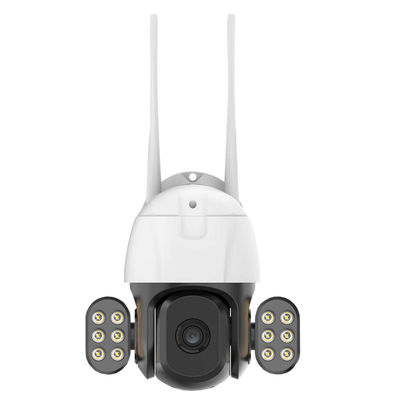

Humanoid Recognition AI Alarm WIFI Dome IP Camera
Features introduction:
* Free 30-day cloud storage, universal at home and abroad;
* Human detection: crossing line, area, two-way flow detection,only
for human shape, the item doesn't trigger alarm;
* Push mobile human alarm info sensitively, custom voice alarm settings;
* Support wireless WiFi and AP hotspot / own network port wired connection / 5DB
dual antenna transmission signal;
* Use DC 12V/2A international standard power supply, (sales products do not contain
power, you need to buy)
*TF card supports up to 128G H.264+ technology to double storage;
* Two-way voice intercom, mobile alarm information push, login via WeChat;
*12 left and right lights warm light + 4 lights hidden infrared dual light source color night vision is clearly visible;
*CMS computer client saves and plays back in real time;
* Standard pickup and speaker sound playback; intelligent alert mode,
dual light source switching;
| Technical Parameters | |||
| Camera parameter | Model | P5 2K[2.8Inches Human Detection Dual Lights Dome Camera] | |
| processor | GK7205V200 | ||
| Camera pixel | 1296P | ||
| sensor | 3 million 1/2.8" SC4239H CMOS sensor, color 0.1Lux F1.2, black and white 0.01Lux F1.2 | ||
| shutter | 1/50 (1/60) seconds to 1/10000 seconds | ||
| Lens | 3.6mm-F1.4, horizontal vision 87°, diagonal 104° | ||
| Lens interface | M12 | ||
| Night light pattern | Left and right 12 lights warm light + 4 lights hidden infrared warm light night vision full color [automatic switching] | ||
| Infrared illumination distance | Within 30 meters | ||
| Compression format | Video compression format | H.265+ | |
| Video compression code rate | Super HD, label second gear, rate adaptive | ||
| image | Maximum image size | Main stream: 2304*1296; sub-stream: 704*576 | |
| Frame rate | Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation | ||
| Features | Alert function | Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection |
|
| Alarm mode | Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting | ||
| Two-way voice | stand by | ||
| Cloud storage | Support (free experience for 30 days) at home and abroad | ||
| Irradiation rotation angle | Rotate 320 degrees horizontally left and right and 90 degrees vertically | ||
| supporting agreement | XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols | ||
| interface | Wired interface | 1 RJ45 10M/100M adaptive Ethernet port | |
| Storage interface | Micro SD card (max. 8-128G) | ||
| Wireless parameter | wifi standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||
| Other range | Power consumption | 6W MAX | |
| Product Size | 160*107*107mm | ||
| Color box size | 250*213*127mm | ||
| Temperature and humidity | Zero 10 ° C -60 ° C, humidity less than 90% [no condensation] | ||
| power supply | DC 12V ± 10% | ||
| weight | Net weight: 486g Gross weight: 746g (Note: actual product) | ||
| Camera parameter | Model | P5-2.5K[2.8Inches Human Detection Dual Lights Dome Camera] | |
| processor | NT98562+SC401AI | ||
| Camera pixel | 2.5K | ||
| sensor | 4 million 1/3"SC401AI high performance CMOS sensor | ||
| shutter | 1/50 (1/60) seconds to 1/10000 seconds | ||
| Lens | 3.6mm-F1.4, horizontal vision 87°, diagonal 104° | ||
| Lens interface | M12 | ||
| Night light pattern | Left and right 12 lights warm light + 4 lights hidden infrared warm light night vision full color [automatic switching] | ||
| Infrared illumination distance | Within 30 meters | ||
| Compression format | Video compression format | H.265+ | |
| Video compression code rate | Super HD, label second gear, rate adaptive | ||
| image | Maximum image size | Main stream: 2560*1440@12fps; sub stream: 640*360@12fps | |
| Frame rate | Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation | ||
| Features | Alert function | Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection |
|
| Alarm mode | Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting | ||
| Two-way voice | stand by | ||
| Cloud storage | Support (free experience for 30 days) at home and abroad | ||
| Irradiation rotation angle | Rotate 320 degrees horizontally left and right and 90 degrees vertically | ||
| supporting agreement | XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols | ||
| interface | Wired interface | 1 RJ45 10M/100M adaptive Ethernet port | |
| Storage interface | Micro SD card (max. 8-128G) | ||
| Wireless parameter | wifi standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||
| Other range | Power consumption | 6W MAX | |
| Product Size | 160*107*107mm | ||
| Color box size | 250*213*127mm | ||
| Temperature and humidity | Zero 10 ° C -60 ° C, humidity less than 90% [no condensation] | ||
| power supply | DC 12V ± 10% | ||
| weight | Net weight: 486g Gross weight: 746g (Note: actual product) | ||
| Camera parameter | Model | P5-4K[2.8Inches Human Detection Dual Lights Dome Camera] | |
| processor | NT98566+SC8239 | ||
| Camera pixel | 8MP | ||
| sensor | 1/2.7"Color 8.0Mega Pixels Coms |
||
| shutter | 1/50 (1/60) seconds to 1/10000 seconds | ||
| Lens | 3.6mm-F1.4, horizontal vision 87°, diagonal 104° | ||
| Lens interface | M12 | ||
| Night light pattern | Left and right 12 lights warm light + 4 lights hidden infrared warm light night vision full color [automatic switching] | ||
| Infrared illumination distance | Within 30 meters | ||
| Compression format | Video compression format | H.265+ | |
| Video compression code rate | Super HD, label second gear, rate adaptive | ||
| image | Maximum image size | Main stream: 3840*2160 @12fps; | |
| Frame rate | Maximum frame rate: 50Hz: 1-25fps network frame rate adaptation | ||
| Features | Alert function | Intelligent dual lights human recognition alarm/cross-line, area, bidirectional flow detection |
|
| Alarm mode | Siren warning, push alarm via mobile APP , custom alarm voice, cross-line/area alarm setting | ||
| Two-way voice | stand by | ||
| Cloud storage | Support (free experience for 30 days) at home and abroad | ||
| Irradiation rotation angle | Rotate 320 degrees horizontally left and right and 90 degrees vertically | ||
| supporting agreement | XM private agreement ONVIF protocol / support to expand RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols | ||
| interface | Wired interface | 1 RJ45 10M/100M adaptive Ethernet port | |
| Storage interface | Micro SD card (max. 8-128G) | ||
| Wireless parameter | wifi standard | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||
| Other range | Power consumption | 6W MAX | |
| Product Size | 160*107*107mm | ||
| Color box size | 250*213*127mm | ||
| Temperature and humidity | Zero 10 ° C -60 ° C, humidity less than 90% [no condensation] | ||
| power supply | DC 12V ± 10% | ||
| weight | Net weight: 486g Gross weight: 746g (Note: actual product) | ||
1 x WIFI camera
1 x User Manual
(Micro SD Card is not included)
Important notices:
1 .SD Card NOT included
2. To install a Micro SD card, open the camera and look for the SD card slot on back of the camera board
3. If you choose an adapter, please leave a message and choose the type of power plug: (EU plug/US plug/AU plug/UK plug)
4. If repairs are required, contact the seller for instructions
5. This camera does not support website browsers such as IE, Chrome
6. This camera does not cloud viewing and saving information
7. Recording time depends on the SD Card being used. Check the recording times below for reference :
16Gb: 4-5days
32Gb :8-10days
64Gb:18-20days
128Gb:28-30days
6. 5G Network WIFI not supported
Humanoid Detection
Support cordon & alert area custom detect setting, Mix line, area, two-way flow detection, for human form
PTZ Remote Control Anywhere
Camera head are rotatable with 270° pan and 100°tilt. You can control it via the app and get a sweeping view on every inch of your entire house.
IP66 Waterproof & Dustproof
The shell is made of high-grade plastic , which is waterproof, sun-proof and dust-proof. It is suitable for any environment.
Smart Dual Light Source
Built-in 4Pcs White LED and 4Pcs IR LED, Monitor moving objects, automatically illuminate. This is an impressive little weapon against crime.
Clear Two Way Audio
Camera is built with microphone and speaker. So you can talk to your kids via your Smartphone remotely whenever you want
Onvif Protocol
Support onvif protocol, can be connected to a third-party NVR centralized management camera, our NVR is the best choice.
Flexible & Secure Storage Options
The camera supports up to 128GB TF card local backup and also provides cloud storage service(Need to pay extra cost)
