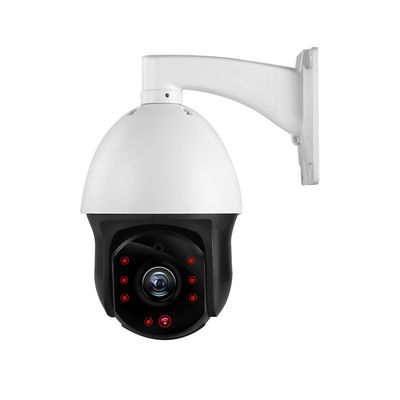

| Dome camera | Model | Q5-2MPE |
| Movement | CPU processor | Hi3516EV100 |
| Image sensor | 2mp 1/2.9"SC2235P COMS Sensor | |
| Intensity of illumination | color:0.1Lux(@F1.2,AGC ON):0 Lux with IR | |
| Black and white:0.01Lux(@F1.2,AGC ON):0 Lux with IR | ||
| Shutter | 1/50(1/60)second to 1/10000 of a second | |
| Maximum image size | 1920*1080 | |
| Frame rate | PAL Mode:1080p(1920*1080@20fps) 720p(1280*720@25fps) | |
| NTSC Mode:1080p(1920*1080@20fps) 720p(1280*720@25fps) | ||
| Day and night mode | Support IR-CUT | |
| Lens | Aperture | F1.6-F2.7 |
| Focal length | 4.7mm-84.6mm | |
| Optical ratio | 20X | |
| Function | Infrared distance | Nine high-power array lamps 120 m |
| Infrared control | Depending on the focal length | |
| Rotation range | Continuous rotation level: 0 ° to 360 ° | |
| Vertical: - 15 ° to 90 ° support automatic continuous monitoring after the turn 180 ° | ||
| Preset point | 255, support data power memory | |
| Automatic mode | Preset point/preset point cruise/horizontal line scan/automatic scan/mode path/random scan and so on | |
| PTZ function | Support power off memory function/boot action | |
| Network protocol | Support RTSP/FTP/PPPOE/DHCP/DDNS / / UPNP network protocol (NTP) | |
| Storage capabilities | Video recorder storage/expandable memory card storage | |
| Interface | Audio interface I/O | o/o |
| Network interface | 1 channel RJ45 interface, 10M/100M adaptive Ethernet port | |
| General scope | Working temperature | (-30℃-65℃0 |
| Working humidity | 10%-90%RH | |
| Power supply | DC12V | |
| Protection grade | IP66,TVS4000V protection against thunder and surge |
1. What products do you deal with?
We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.
Ordinary,once we get confirmation for payment,we will ship order within 2-5 days.
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.
Two years warranty.
